SKU 55-042 | 40-36 | 9HP | 4MCX | Lift arm

SKU 55-042 | 40-36 | 9HP | 4MCX | Lift arm

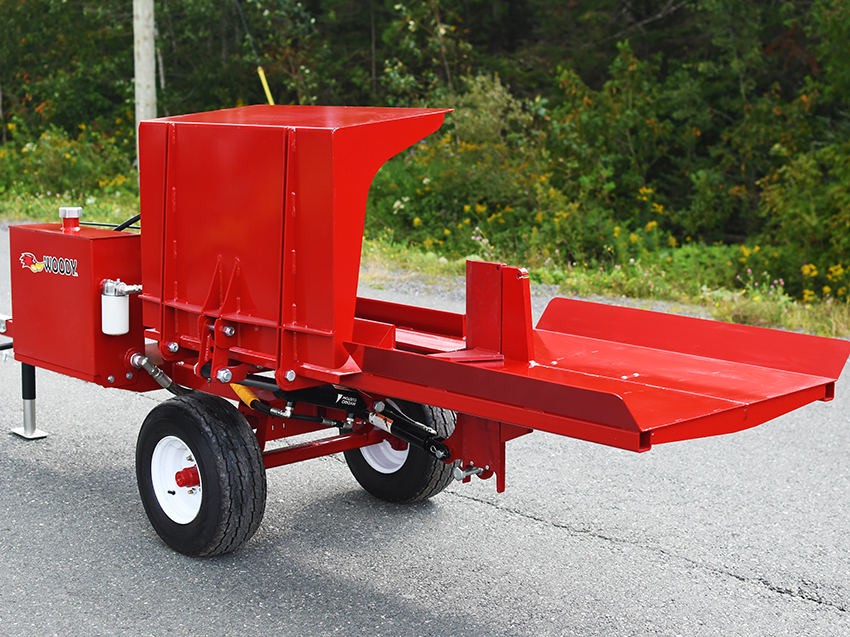

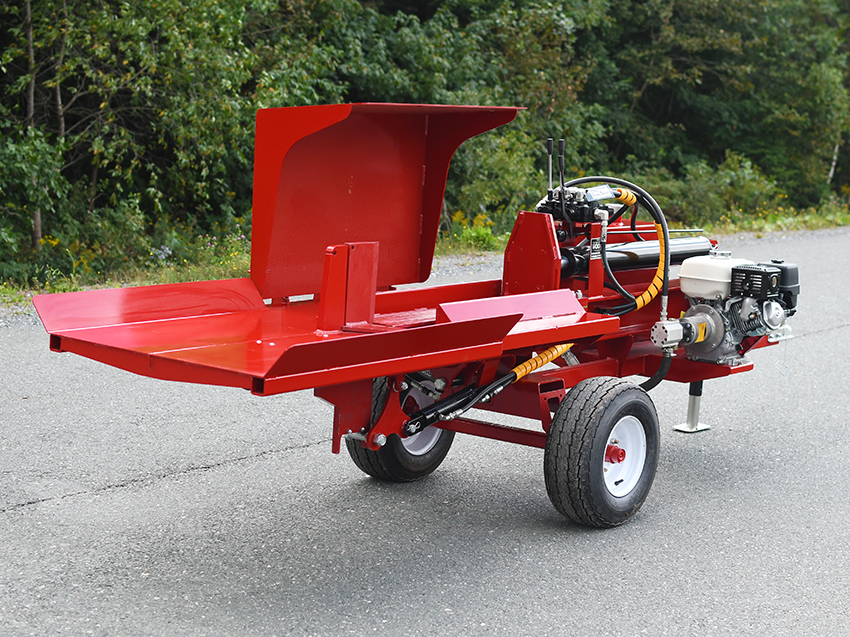

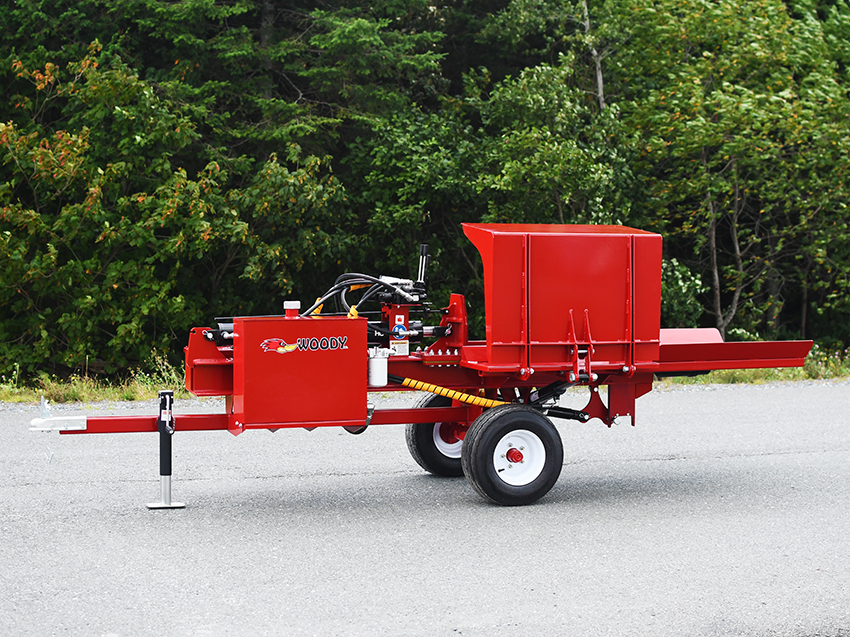

This Woody 40-36 4-Way Wedge Standalone Wood Splitter is designed for longer wood.

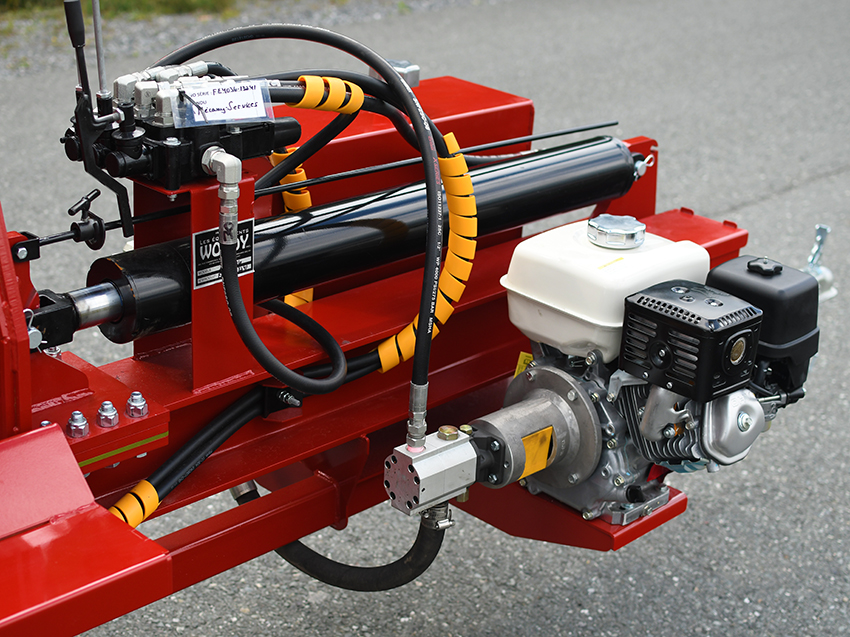

It is equipped with a 9 HP Honda engine, a 13.0/4.2 gpm 2 stage pump, a 15 gallons tank, a stroke length of 36”, a Log lifting,  2” hitch coupler.

  • This spliter is equipped with a lever to adjust the cut to 3 different positions.

  • It can split wood in the horizontal position.

    LOG SPLITTER

    TECHNICAL SPECIFICATION

    Tonnage

    20 Ton

    Stroke lenght

    36''

    Stroke Complet cycle

    15 Secondes

    Tires

    20.5 x 8-10

    Tires

    20.5 x 8-10 | Check the tires section

    Position

    Horizontal

    HYDRAULIC

    Motorisation

    Honda 9 HP

    HYDRAULIC Power

    2 Stages Pump

    Oil Flow

    13.0 / 4.2 GPM

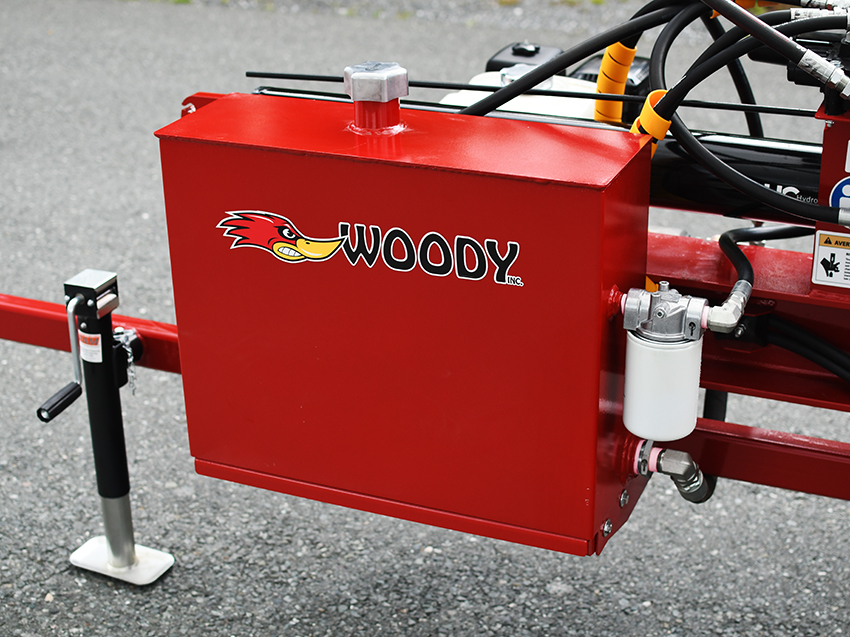

    Oil Tank

    15 Gallons

    Attachements

    2'' hitch coupler

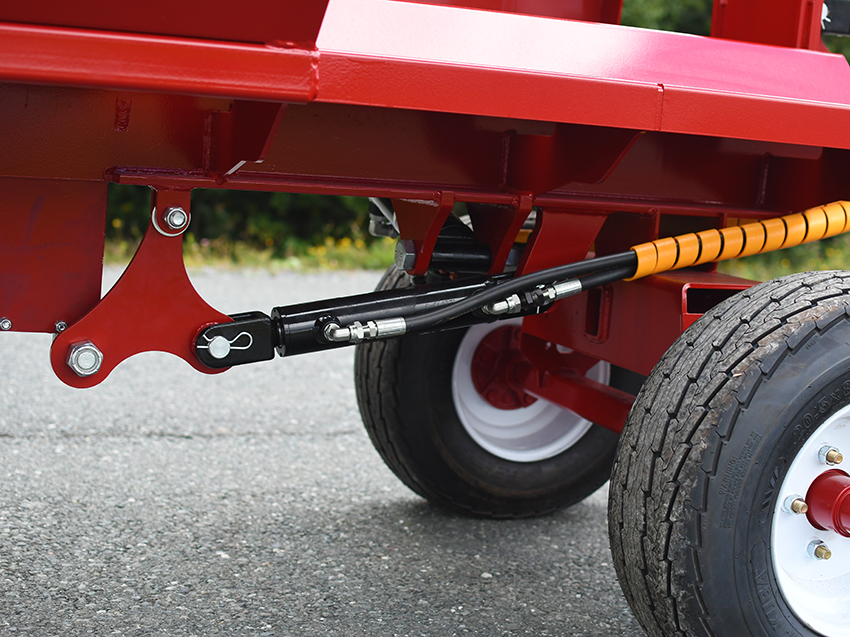

    Hydraulique arm lift

    Inclus

    Lever to adjust 3 differents cuts

    3 blades cut settings

    OPTION

    Hydraulic knife

    Standard
