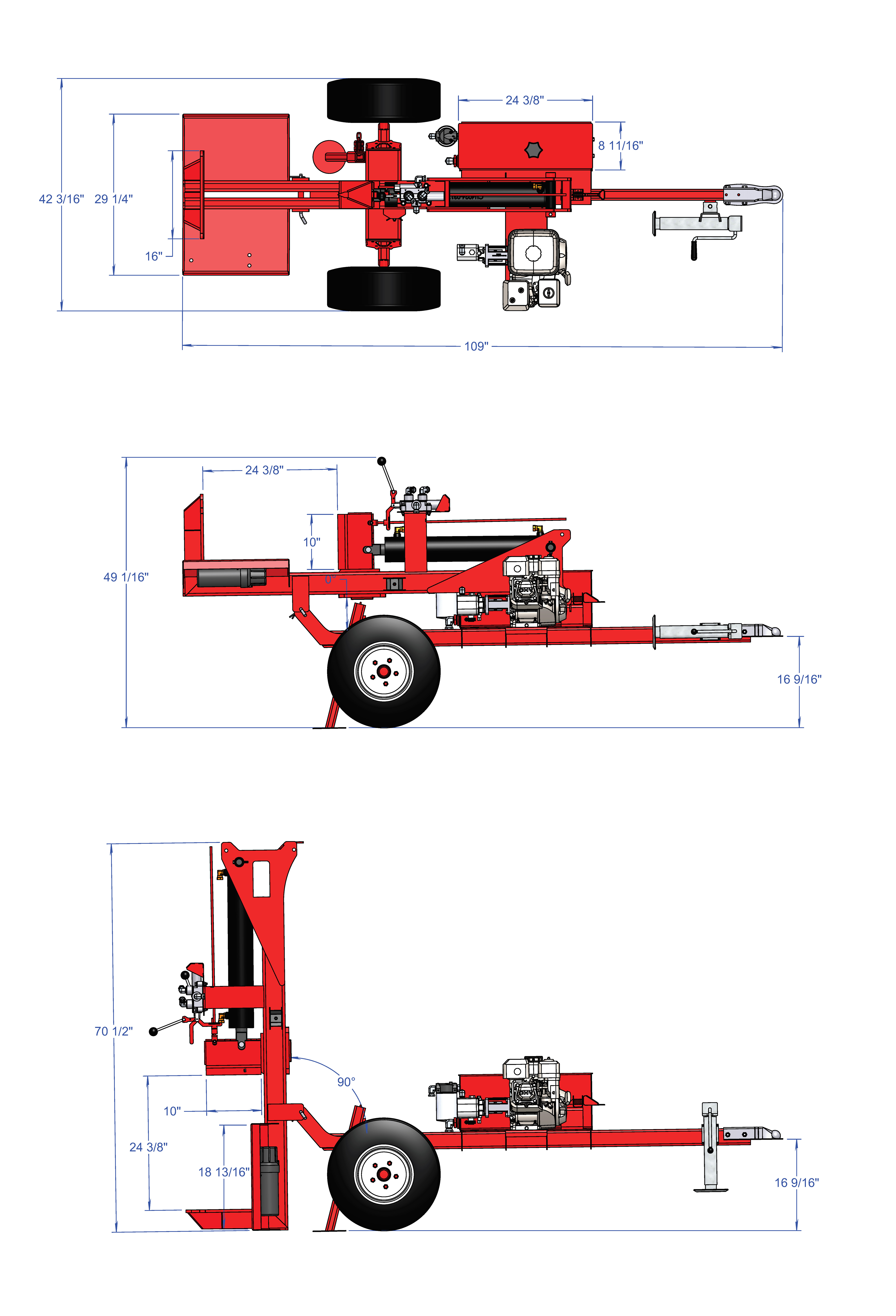

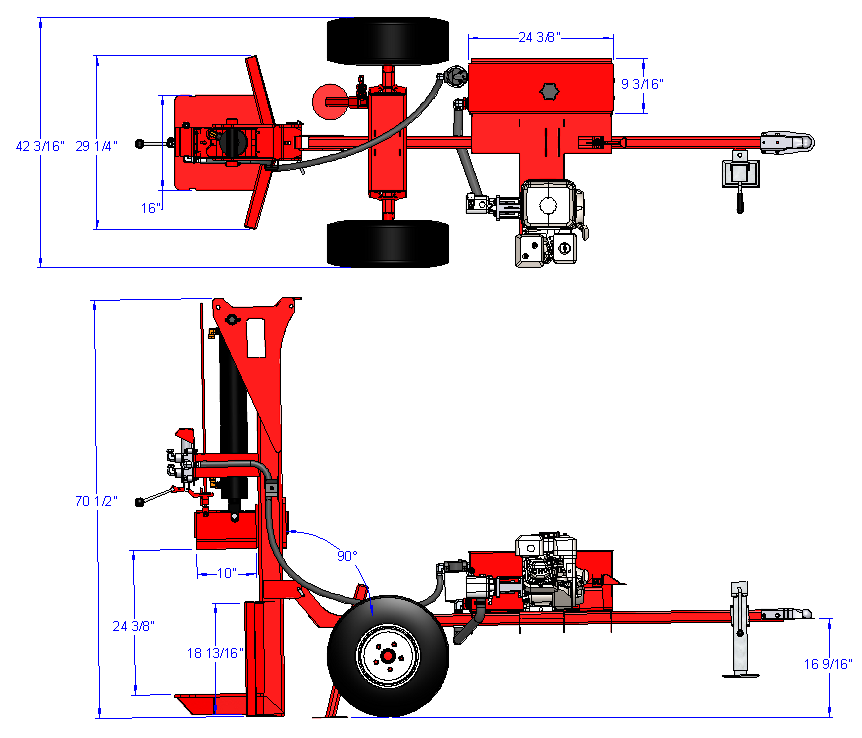

Picture of 55-038 with 15 Gal oil tank and GX270 engine.
This Woody 40-24 standalone log splitter is very popular.
It comes with a 5.5 HP Honda engine.
It has a 2-stage pump with 8.8/3.0 GPM.
An 8-gallon oil reservoir.
A full splitting cycle takes 13 seconds.
The stroke length is 24" with a 2" handle.
This model can split both horizontally and vertically.
LOG SPLITTER | |
|---|---|
TECHNICAL SPECIFICATION | |
Tonnage | 20 TON |
Stroke lenght | 24'' |
Stroke Complet cycle | 13 Secondes |
Tires | 20.5 x 8-10 | Check the tires section |
Position | Horizontal and Vertical |
Motorisation | Honda 5.5 HP |
HYDRAULIC Power | 2 Stages Pump |
Oil Flow | 8.8 / 3 GPM |
Oil Tank | 8 Gallons |
Attachements | 2'' hitch coupler |
|
